Главная страница ПродукцияУплотнения насоса механическиеMulti-Spring Seal Chesterton 491 Seal DIN Rotary Internal Single Seal

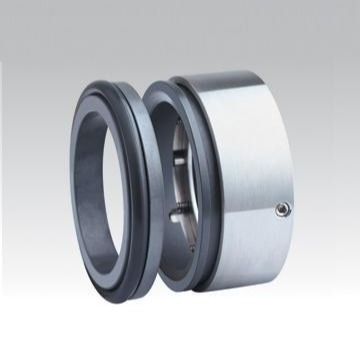

Multi-Spring Seal Chesterton 491 Seal DIN Rotary Internal Single Seal
Multi-Spring Seal Chesterton 491 Seal DIN Rotary Internal Single Seal Multi-Spring Seal Chesterton 491 Seal DIN Rotary Internal Single Seal Multi-Spring Seal Chesterton 491 Seal DIN Rotary Internal Single Seal Multi-Spring Seal Chesterton 491 Seal DIN Rotary Internal Single Seal Multi-Spring Seal Chesterton 491 Seal DIN Rotary Internal Single Seal
Контакт

Multi-Spring Seal Chesterton 491 Seal DIN Rotary Internal Single Seal

Количество мин заказа : 100 % Цена : Negotiated
Упаковывая детали : коробка в качестве требования Время доставки : 10 дней
Условия оплаты : Т/Т, Вестерн Юнион, Л/К Поставка способности : 10000000 процентов/месяц
Место происхождения: Сделано в Китае Фирменное наименование: JR
Сертификация: ISO9001 Номер модели: 491

Подробная информация
Материал: Sic sic fkm cer car nbr Функция: Для масляного насоса, водяного насоса
Транспортный пакет: коробка Код HS: 848420090
Спецификация: Уплотнения Multi весны механические сертификат: ИСО9001
Тип: Механическое уплотнение 491 Стандартный или не задержка: Стандартный
Стиль: Уплотнение 491 Chesterton механическое Размер: 18-100mm

Характер продукции

Mechanical Seals 491 Multi Spring Chesterton Balanced O Ring Seal For Water Pumps

Operations Conditions:

  1. Multiple spring seal.
  2. Chesterton 491 mechanical seals
  3. Fits extra small seal chambers
  4. Designed to qutlast single spring seals.
  5. Temperature: -20C to 180C
  6. Pressure: to 1MPA
  7. Speed to 10m/s
  8. Rotationarl speed to 3600RPM


Materials:

  • Stationary Ring:Silicon Carbide Reaction Bonded
  • Rotary Ring:,Silicon Carbide Reaction Bonded
  • Secondary Seal:Fluorocarbon Rubber(FKM)
  • Spring and Metal Parts:Stainless Steel
  • Seat Types:
  • Seat Types:Standard: 24 DINL
  • Applications: Clean water, sewage water, oland other moderately corrosive fluids


Performance Capabilities:


Temperature
-20℃ to 180℃, dependent on the elastomer
Pressure
Up to 1MPA
Speed
Up to 10 m/s
End play/axial float allowance
±0.1mm
Size
18-100
Brand
JR
Face
Carbon, SiC, TC
Seat
Ceramic, SiC, TC
Elastomer
NBR, EPDM, FKM etc.
Spring
SS304, SS316
Metal parts
SS304, SS316
Packing Individual packing ,1 pc in 1 small box is available as well



491 can replace CHESTERTON 491,which is widely used for industrial pumps. The normal material combination include resin carbon/SIC/NBR/ss304,sic/sic/NBR/ss304 and so on. we also can make changes as customers'requirement or totally design a new type of mechanical seal to meet clients'needs.

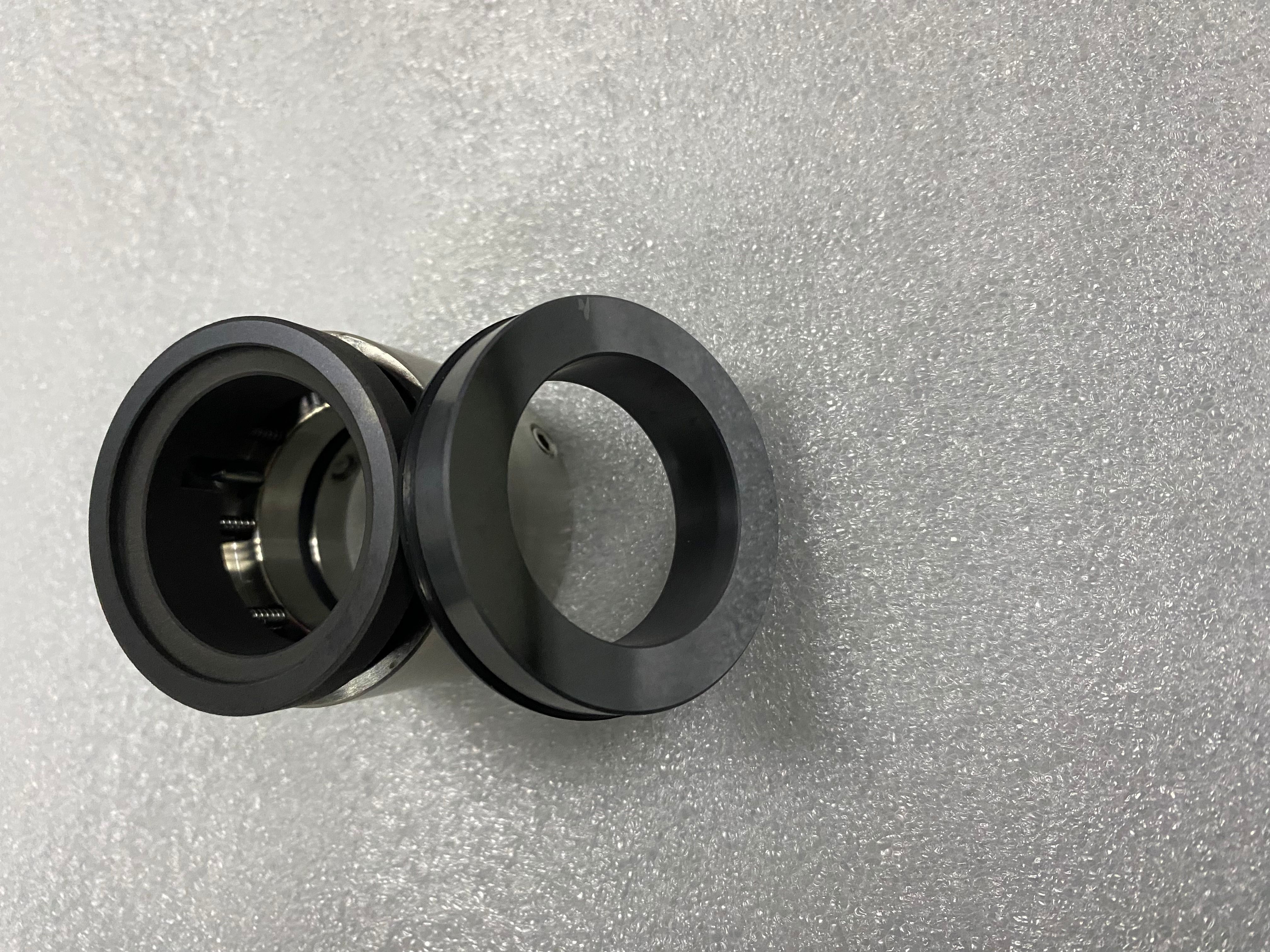

Multi-Spring Seal Chesterton 491 Seal DIN Rotary Internal Single Seal 0

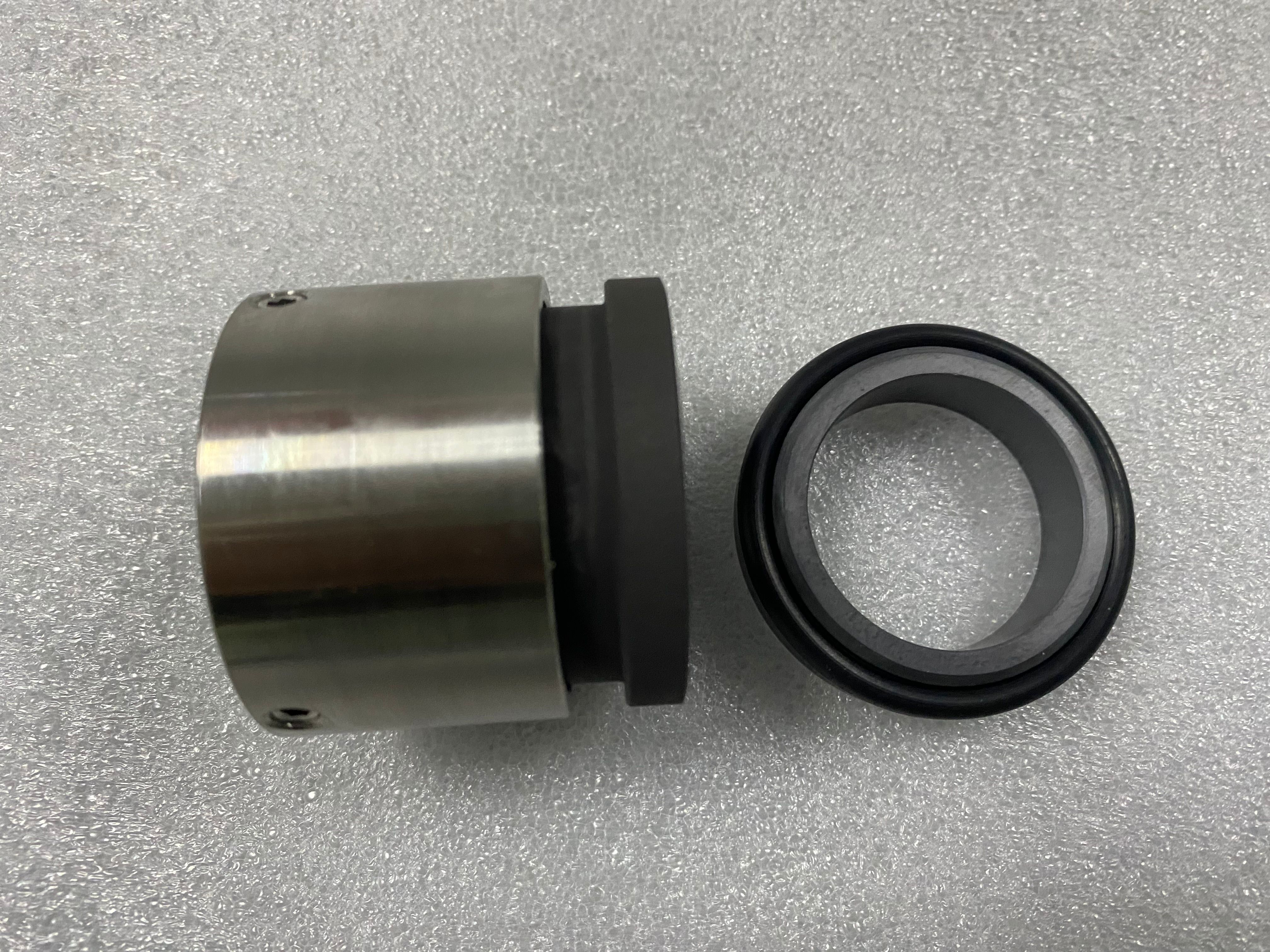

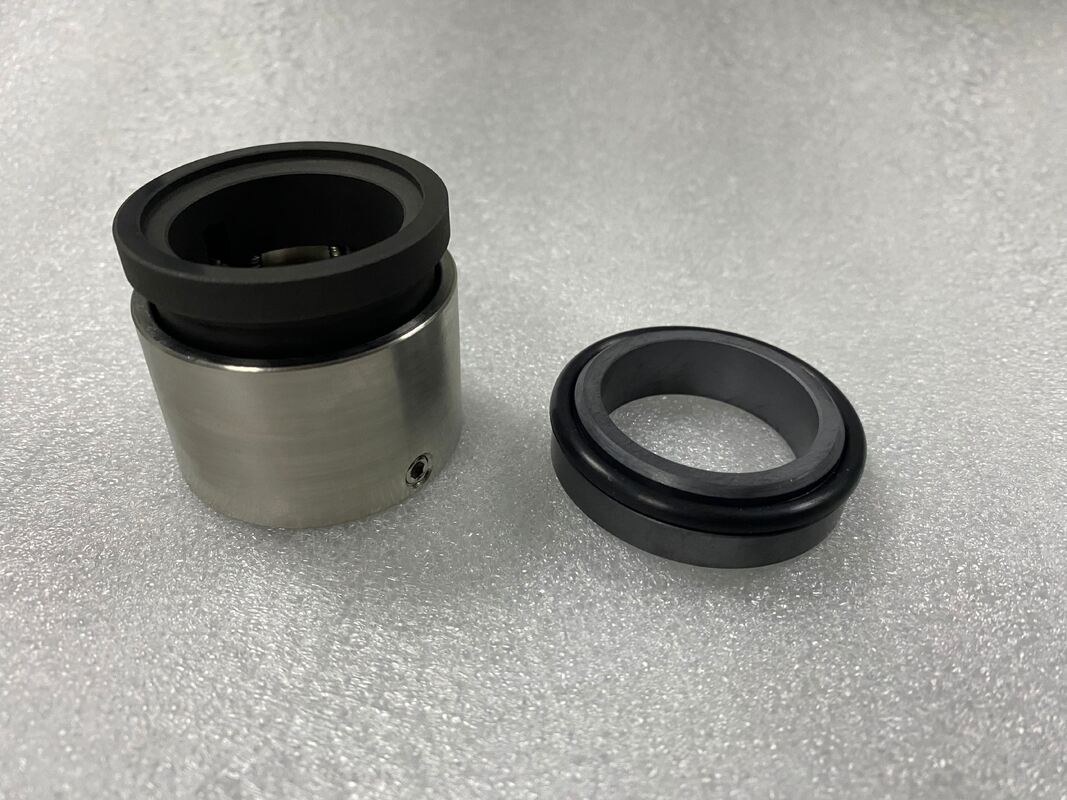

Multi-Spring Seal Chesterton 491 Seal DIN Rotary Internal Single Seal 1Multi-Spring Seal Chesterton 491 Seal DIN Rotary Internal Single Seal 2Multi-Spring Seal Chesterton 491 Seal DIN Rotary Internal Single Seal 3Multi-Spring Seal Chesterton 491 Seal DIN Rotary Internal Single Seal 4

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,



All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
